Bagging Machines - Poly and Paper
SIMPLICITA BAG SMART
The simple and versatile bag forming and filling machine
With Simplicita® Bag Smart it is possible to pack products in bags of infinite lengths starting from a single reel of tubular film.
The machine is able to package products of different weights and sizes and is suitable for many product categories, from small items to heavier ones, such as mechanical spare parts, hydraulic fittings and accessories, small metal components, furnishing accessories, pharmaceuticals, toys and many more.
Main features
Reel change less than 60 seconds
Machine cycle speed: up to 42 bags per minute (depending on the size and nature of the product to be packaged and the accessories implemented)
Mobile HMI touch screen monitor for layout optimization and can be positioned outside safety guards.
Adjustable product insertion mouth
Bags exit possible in all directions
Height of the work surface: 870 mm
Possibility to save different work configurations (bag type, length, temperatures, times, etc.) to be recalled quickly for repetitive operations
Structure in electro-welded and powder-coated steel with ABS cover
Possibility of producing empty bags to be used offline
Maximum reduction of the fall height of the product
Ethernet port for remote support and software updates
Possibility to access the bag with your hands (compatibly with the size of the bag)
Easy to move (on request it is available with wheels)

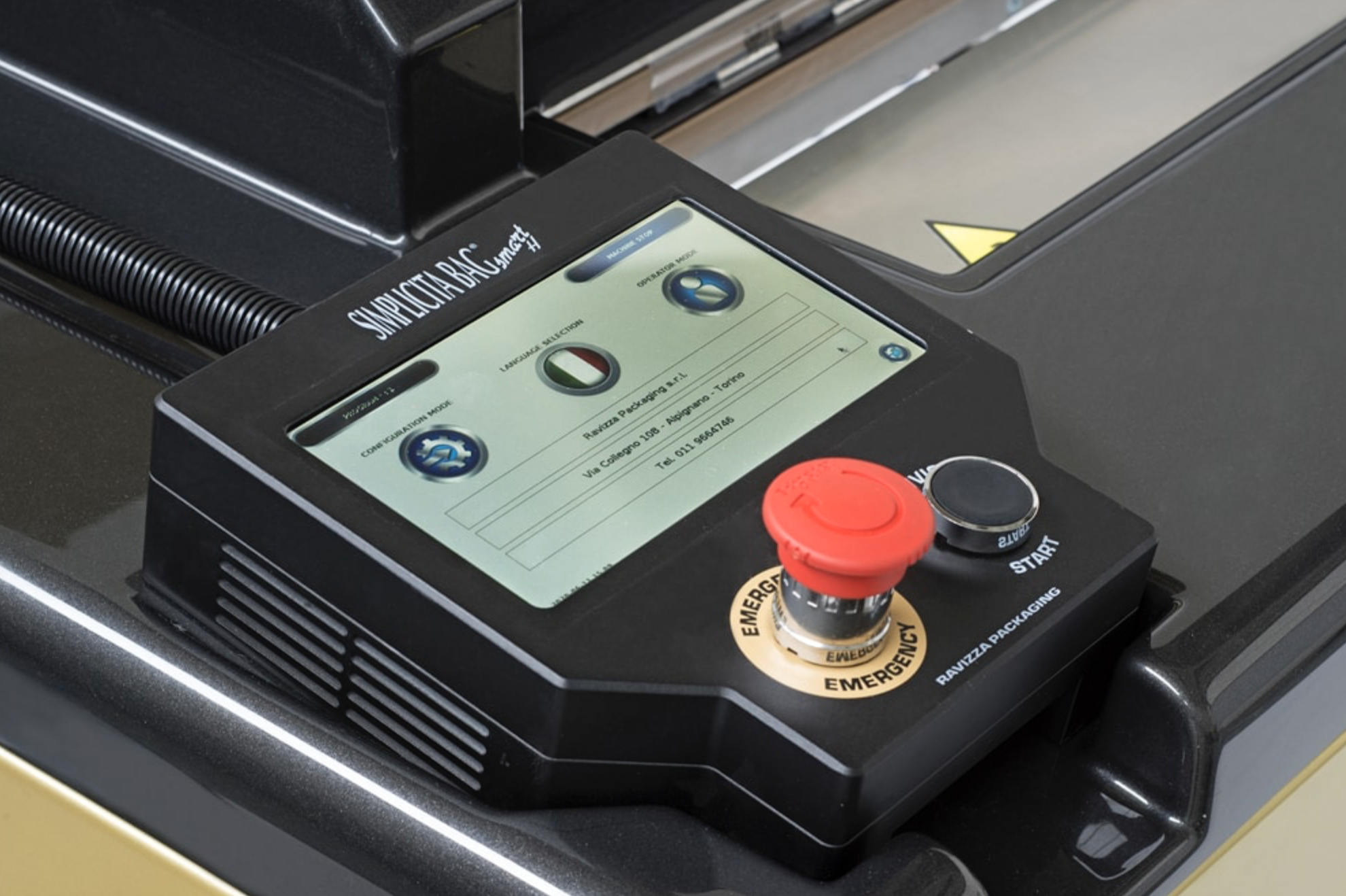

Easy-to-use integrated control panel, with guided multilingual menus, functions on three levels of access with password
Three widths of Parcel Baggers
-
BAG SMART 220 EM
DESCRIPTION:
Economical e-commerce and low environmental impact automatic packaging machine thanks to the high performance of paper packaging or recyclable film.
MAIN FEATURES:
- Mechanical speed up to 20ppm (1.200 packs/hour)
- Ergonomic and modular design
- Touch screen operator panel
- Simplified format changes and maintenance
- Ready for labelling machine or thermal coding direct on to the film
- Tube film
-
- Packaging: Cross welding with Safety features:
✅ PAPER WRAPPING
✅ FILM WRAPPING
✅ FULFILLMENT
✅ DISTRIBUTION
✅ SOFTWARE
-

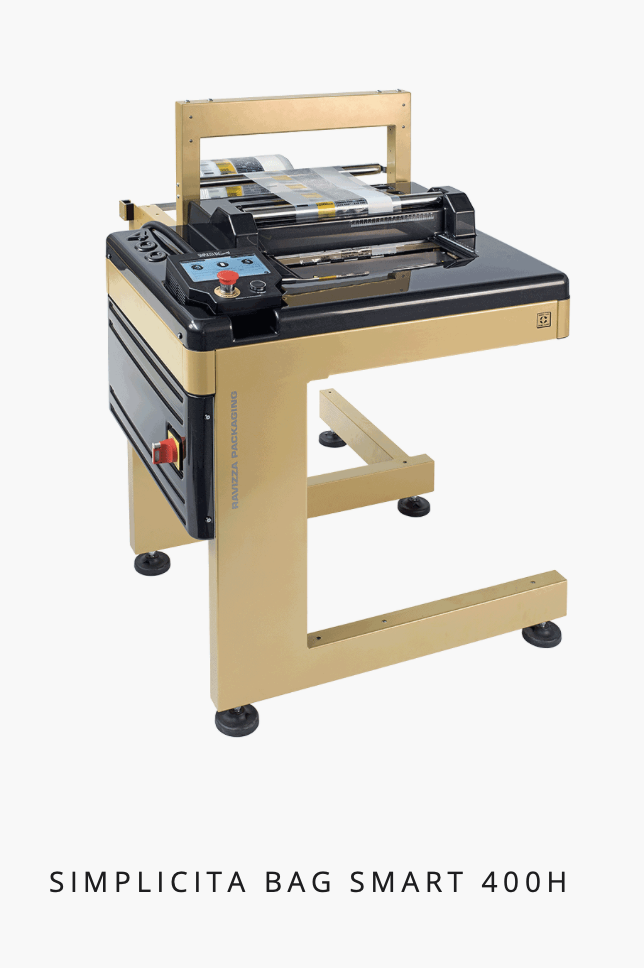

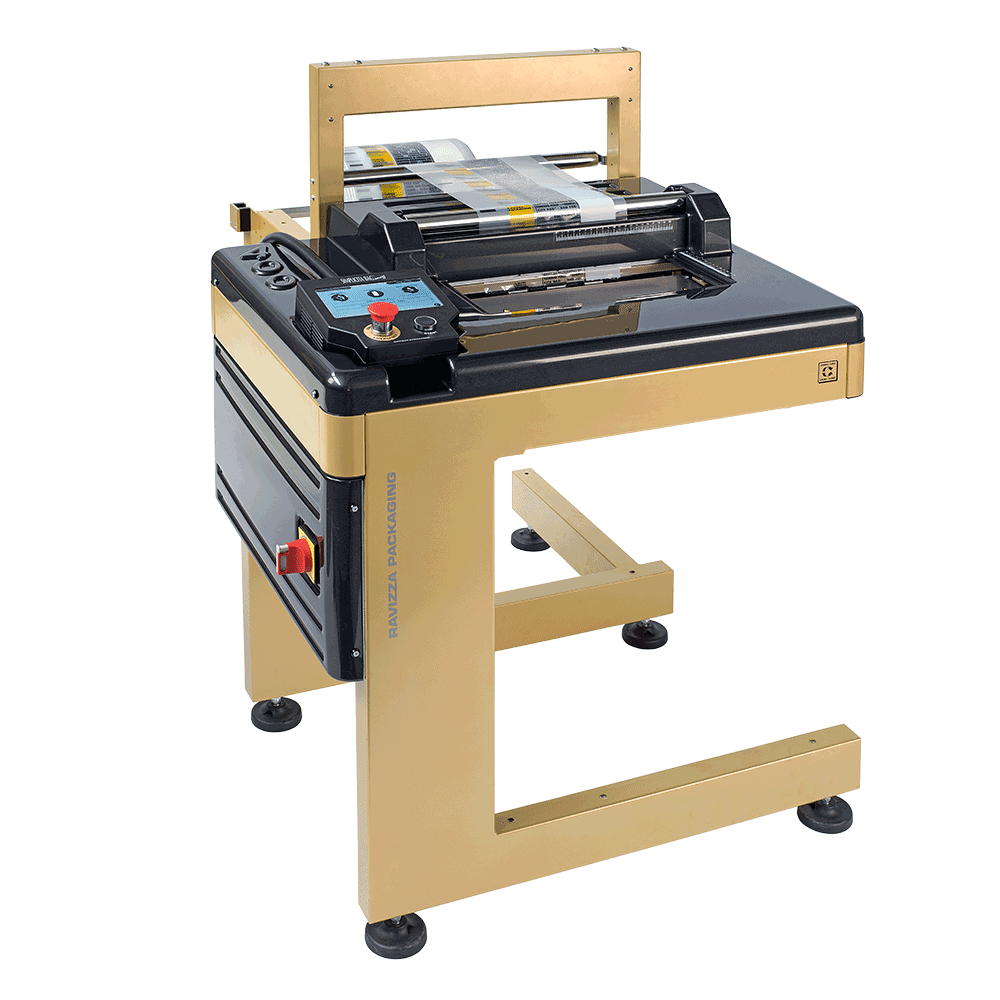

BAG SMART 400H
DESCRIPTION:
Packaging machine for variable size packs specific for e-commerce parcel packaging solution.
MAIN FEATURES:
The Bag Smart Systems are proven to be a winning solution, able to respond to the needs arising from the boom in the e-commerce sector in Europe, but Ravizza Packaging wanted to go further. Building on its experience in sorting processes, the company developed product loading tables or robotic loading solutions to assist in packaging automation. In addition to allowing packages of variable sizes to be packaged with different types of films, integrates and automates advanced processes, increasingly meeting the needs of efficiency, work management and cost saving experienced by companies active in the sector.
In the Bag Smart Models packaging machines operating concept, upstream the Cobots automatically scan products for shape and pick up products from a conveyor and, thanks to a special feeding system created by Ravizza, offers the possibility to scan products and create the correct size bag with adjustable vacuum or air compression options. ensuring significant savings.
The packaging machine operates in a vertical direction, guaranteeing wrapping with tailored film applied to packs of different sizes and shapes, quickly performing the various operations of cutting, sealing, print or labelling. Finally, downstream in the process, the Bag Smart Models integrate perfectly with the sorting systems, which concludes the package management cycle from picking to final shipment.
✅ PAPER WRAPPING
✅ FILM WRAPPING
✅ FULFILLMENT
✅ DISTRIBUTION
✅ SOFTWARE
-

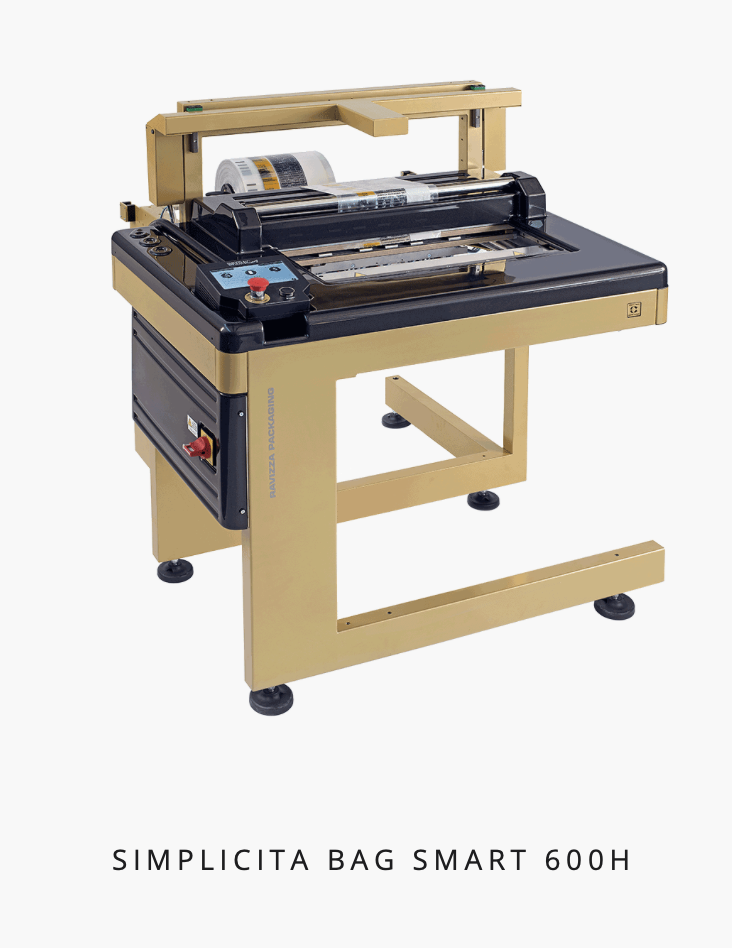

BAG SMART 600H
DESCRIPTION:
The Bag Smart 600H is the widest model in the e-commerce parcel packaging solutions, the simple and flexible solution ideal for rigid or flexible products, with variable format on one size.
MAIN FEATURES:
- Mechanical speed up to 1,200 pieces / hour. (12-20ppm depending on the product, film thickness and operator dexterity.
- OPTIONAL exit conveyor
- Operator interface with touch screen display
- Built-in memory programs for a quick start in production
- WE have an extensive range of options that can be integrated with these baggers including Bowl Feeders, Product Counters, Robotic Feeding Product Collating tables. Ideal for packing plastic and metal Fittings, such as hose fitting, pneumatic air fittings, Cosmetics, Shoes, Direct Mail order processing.
- Bag Sealing: Impulse Sealing with Safety features
Material format: Tubular Film
✅ PAPER WRAPPING
✅ FILM WRAPPING
✅ FULFILLMENT
✅ DISTRIBUTION
✅ SOFTWARE
It does not require pre-formed bags
The great advantage of Simplicita® Bag Smart is in the use of a single roll of tubular film for the different lengths of the bags. Once formed, the bags are held with the opening facing up ready for manual, semi-automatic or fully automated filling. Once the product to be packaged has been inserted, the machine seals the bag and presents a new one, open and ready for the next product.
A forming machine with great performance
Simplicita® Bag Smart has been designed for all those applications that require total flexibility with the smallest footprint. Its extreme operational functionality allows you to insert the product both manually and automatically. Its design also offers great adaptability, with the possibility of being customized for possible integration with existing production lines, whether with assembly stations or fully automated lines.
MADE-TO-MEASURE
PACKAGING
Flexible packaging used in e-commerce allows both optimal packaging functionality and the best use of resources.
Flexible packaging is by nature highly adaptable. Smart design can bring additional sustainability benefits. These benefits range from appropriately sized portions to resealable solutions that minimize waste.
Flexible, lightweight packaging can dramatically reduce the environmental impacts of packaging materials, while also offering significant benefits for product storage and transportation.
ADVANTAGES
360° flexible solutions, from stand-alone machines to complete lines
Potential creation of custom shaped packages based on contents
Top-tier expertise and know-how developed over 50 years
Solutions with high sustainability and low environmental impact
A well-developed track & trace system capable of monitoring a single product and tracing it along the entire distribution chain
Whether you are looking for a Simple Manual Load Bagging System or a Turn Key Solution?
We can help!
