CARTONERS

Spitze’s extensive range of Cartoning Machines have an open design that makes viewing the machine operation from all sides, solid sturdy construction, smooth operation and reliable machines designed to HANDLE NUMEROUS TYPES OF PRODUCTS, such as cereals, pizza, cake mix, soap, toothpaste, etc.

SIMPLE & REPEATABLE SIZE CHANGES: With adjustable diameter indicators for size changeover system provides an accurate and quick adjustment the inner parts of the machine from the current product to the next & Simple HMI making it easy-to-operate .

COMPACT DIMENSIONS: Every single machine is designed, according to the client’s needs and to fit the available space. As mentioned above the integration of elevated switchboards into the top section of the machine optimises the space and makes the accessibility from all sides easier.

Machine Input

OUR MACHINES CAN PACK DIFFERENT KINDS OF PACKAGES.

RESPECT FOR THE PRODUCT: Throughout the carton Forming and Case Formation and packing process, the products are always kept in correct position by rails and retractable holding flaps to prevent falls, bumps, breaks or micro damage. The product holding systems installed on the conveyors allow optimisation of package size.

RELIABILITY: The machines are designed and built with sturdy materials and top quality standard electric and pneumatic components.

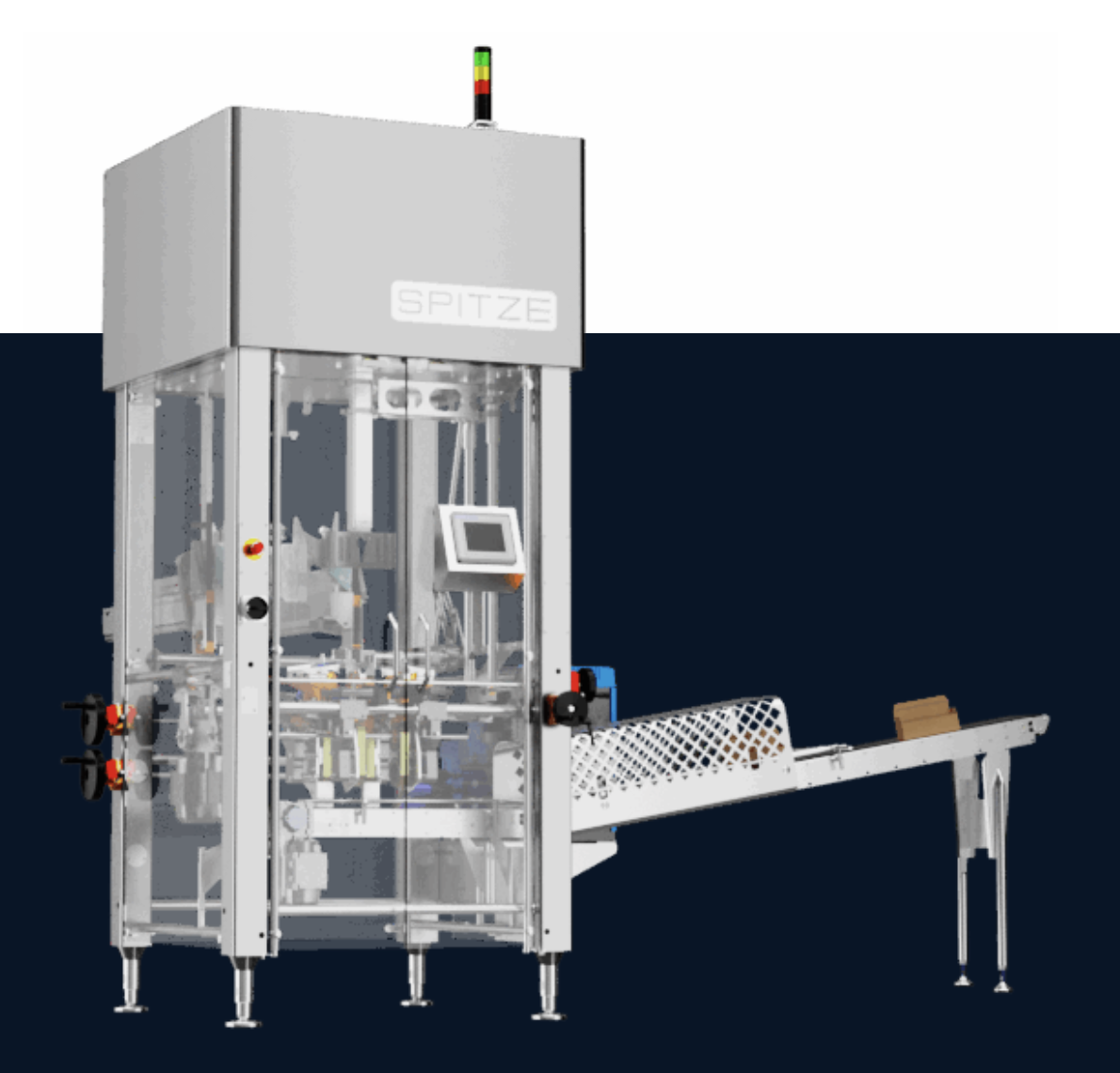

  • CARTON ERECTOR - SINGLE

    An efficient machine for erecting flat blanks, with fast, safe, and easy format changeovers.

    For erecting cartons in a variety of designs. For example, so-called 1-flap and 3-flap cartons, mechanical lock, mechanical top fold, web corner, hexagonal shape, etc.
    The machines are adapted for cardboard alternatively/in combination with corrugated board.

    Electricity and operation are located on top of the machines to create a clean and hygienic floor surface.
    Available in different machine sizes depending on the format of the carton.

    Knobs and position indicators are offered as standard. Normal changeover time: 2–3 minutes. Option for automatic format changeover.

    Up to 60 cartons/minute.

    Tell me more

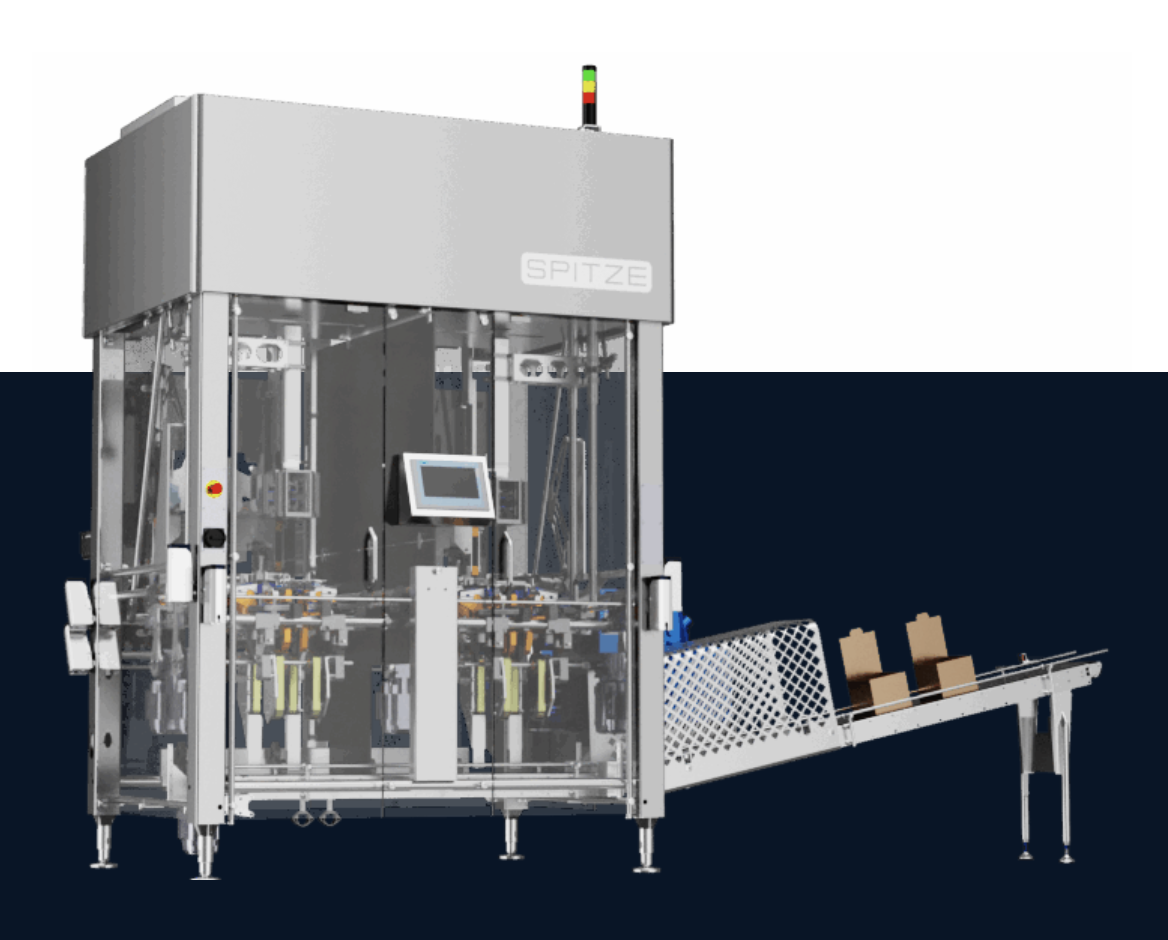

  • CARTON ERECTOR - DOUBLE

    An efficient machine for erecting flat blanks, with fast, safe, and easy format changeovers.

    For erecting cartons in a variety of designs. For example, so-called 1-flap and 3-flap cartons, mechanical lock, mechanical top fold, web corner, hexagonal shape, etc.
    The machines are adapted for cardboard alternatively/in combination with corrugated board.

    Electricity and operation are located on top of the machines to create a clean and hygienic floor surface.
    Available in different machine sizes depending on the format of the carton.

    Knobs and position indicators are offered as standard. Normal changeover time: 2–3 minutes. Option for automatic format changeover.

    Up to 120 cartons/minute.

    I'd like more information

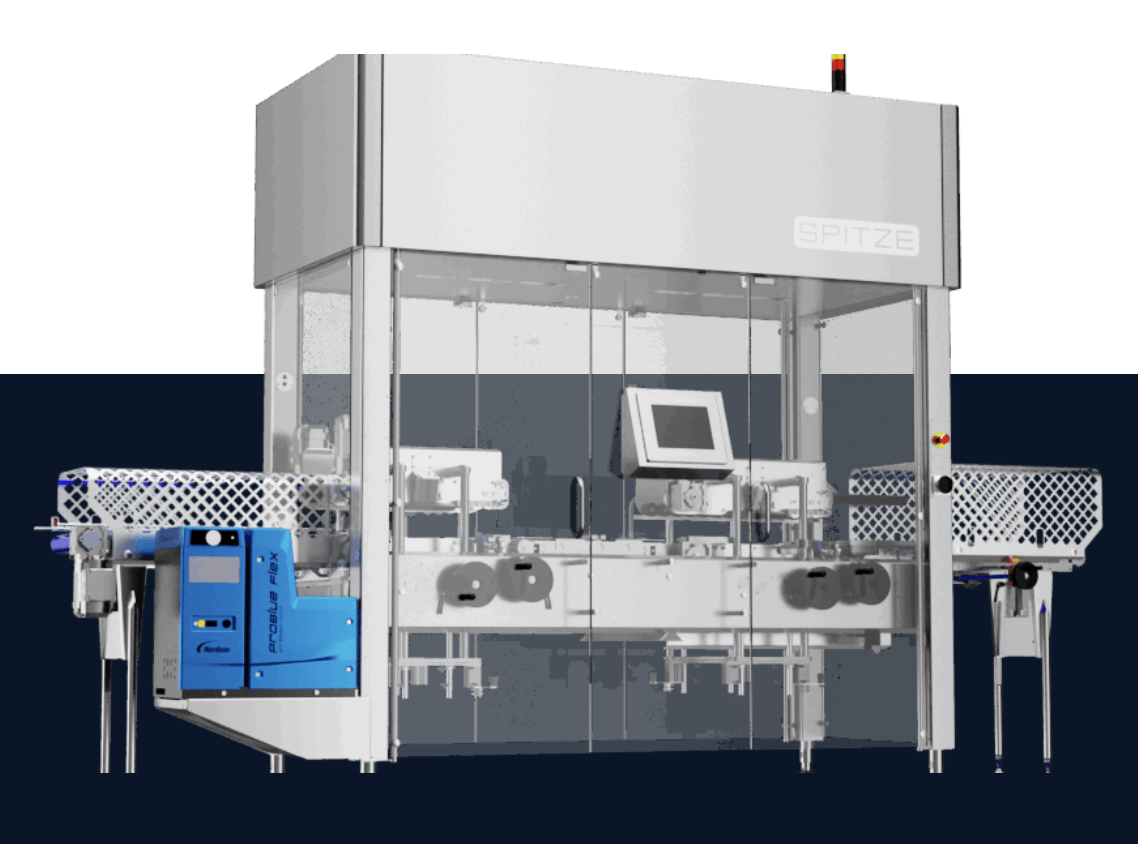

  • 1 FLAP - CARTON CLOSER

    An efficient machine for closing cartons, with fast, safe, and easy format changeovers.
    For closing so-called 1-flap cartons. Externally glued front flap or insert flap.
    Gluing of dust flaps possible.
    The machines are adapted for cardboard alternatively/in combination with corrugated board.

    Electricity and operation are located on top of the machines to create a clean and hygienic floor surface.
    Available in different machine sizes depending on the format of the carton.

    Knobs and position indicators are offered as standard. Normal changeover time: 2–3 minutes. Option for automatic format changeover.

    Up to 120 cartons/minute depending on carton size and machine variant.

    Contact Us

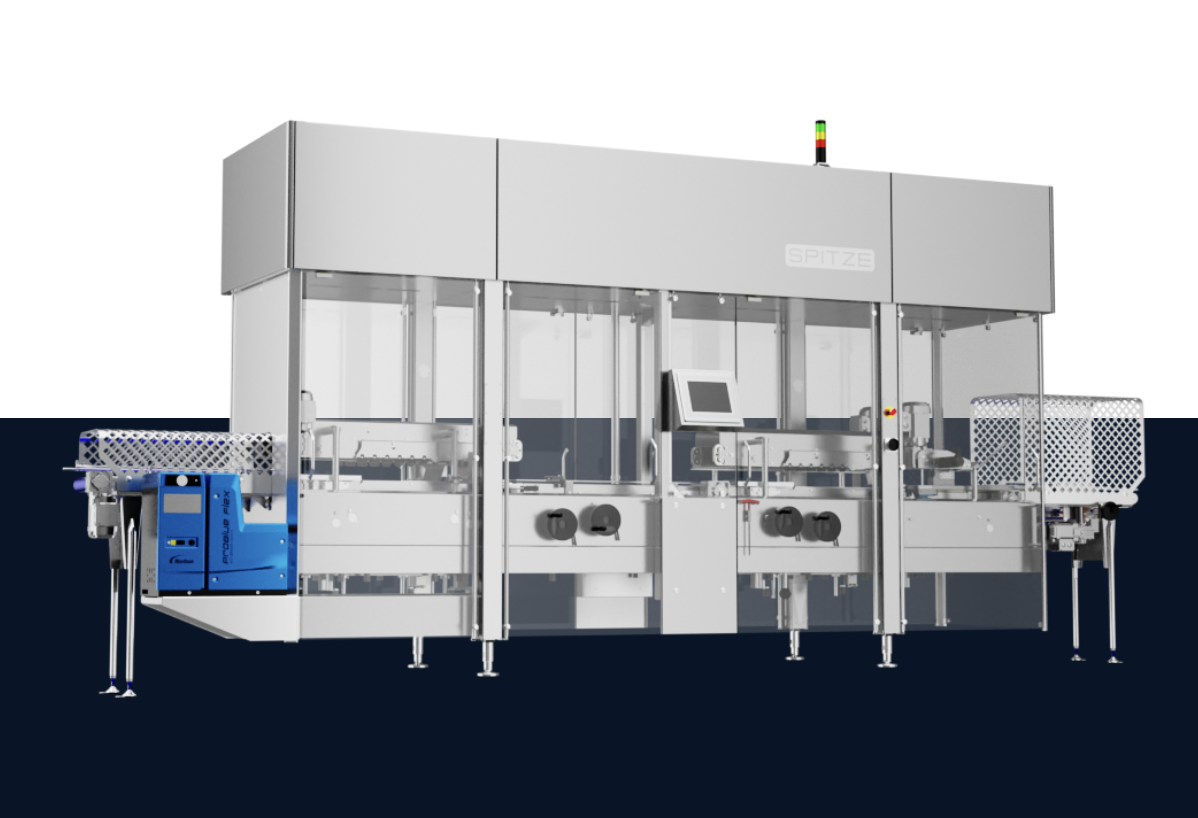

  • 3 FLAP - CARTON CLOSER

    An efficient machine for closing cartons, with fast, safe, and easy format changeovers.

    For sealing so-called 3-flap cartons. External gluing of front and side flaps
    The machines are adapted for cardboard alternatively/in combination with corrugated board.

    lectricity and operation are located on top of the machines to create a clean and hygienic floor surface.
    Available in different machine sizes depending on the format of the carton.

    Knobs and position indicators are offered as standard. Normal changeover time: 2–3 minutes. Option for automatic format changeover.

    Up to 120 cartons/minute depending on carton size and machine variant.

    More info

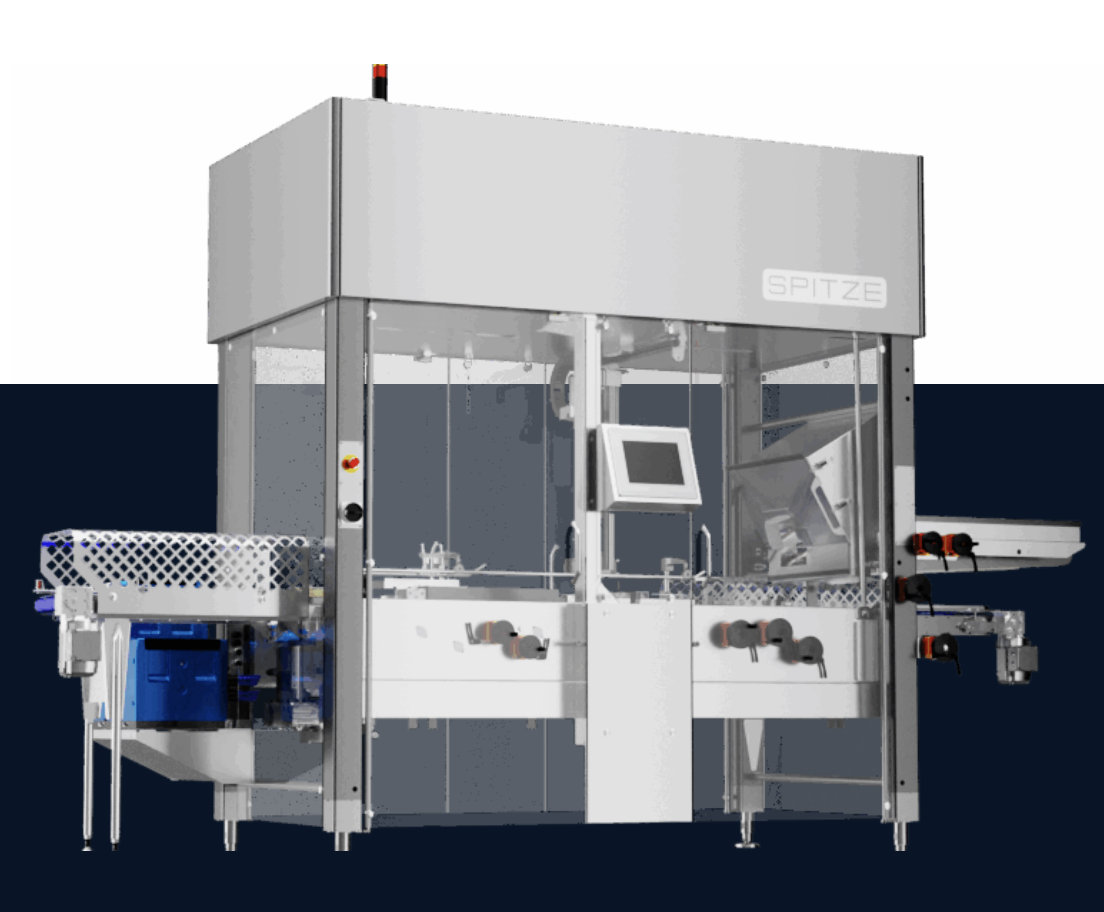

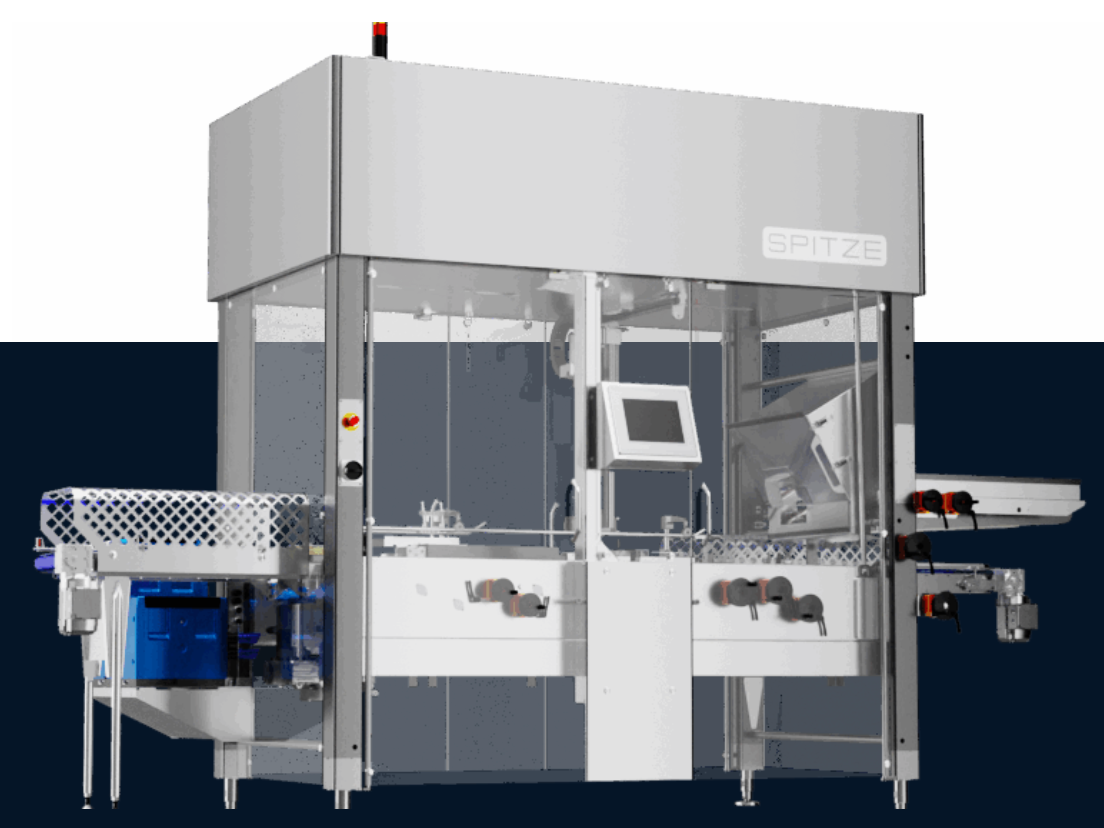

  • ENDLOAD CARTONER

    A compact machine that can be built in several different sizes, and for different capacity needs.

    For automatic packaging of products in pre-glued cardboard sleeves. The machine erects the sleeve, packs the product and seals the carton. All in one continuous sequence.
    Gluing and/or insert tab is possible.
    The machines are adapted for cardboard alternatively/in combination with corrugated board.

    Electricity and operation are located on top of the machines to create a clean and hygienic floor surface.

    Knobs and position indicators are offered as standard. Normal changeover time: 5–10 minutes. Option for automatic format changeover.

    Up to 80 cartons/minute depending on carton size and variant of machine.

    Tell me more

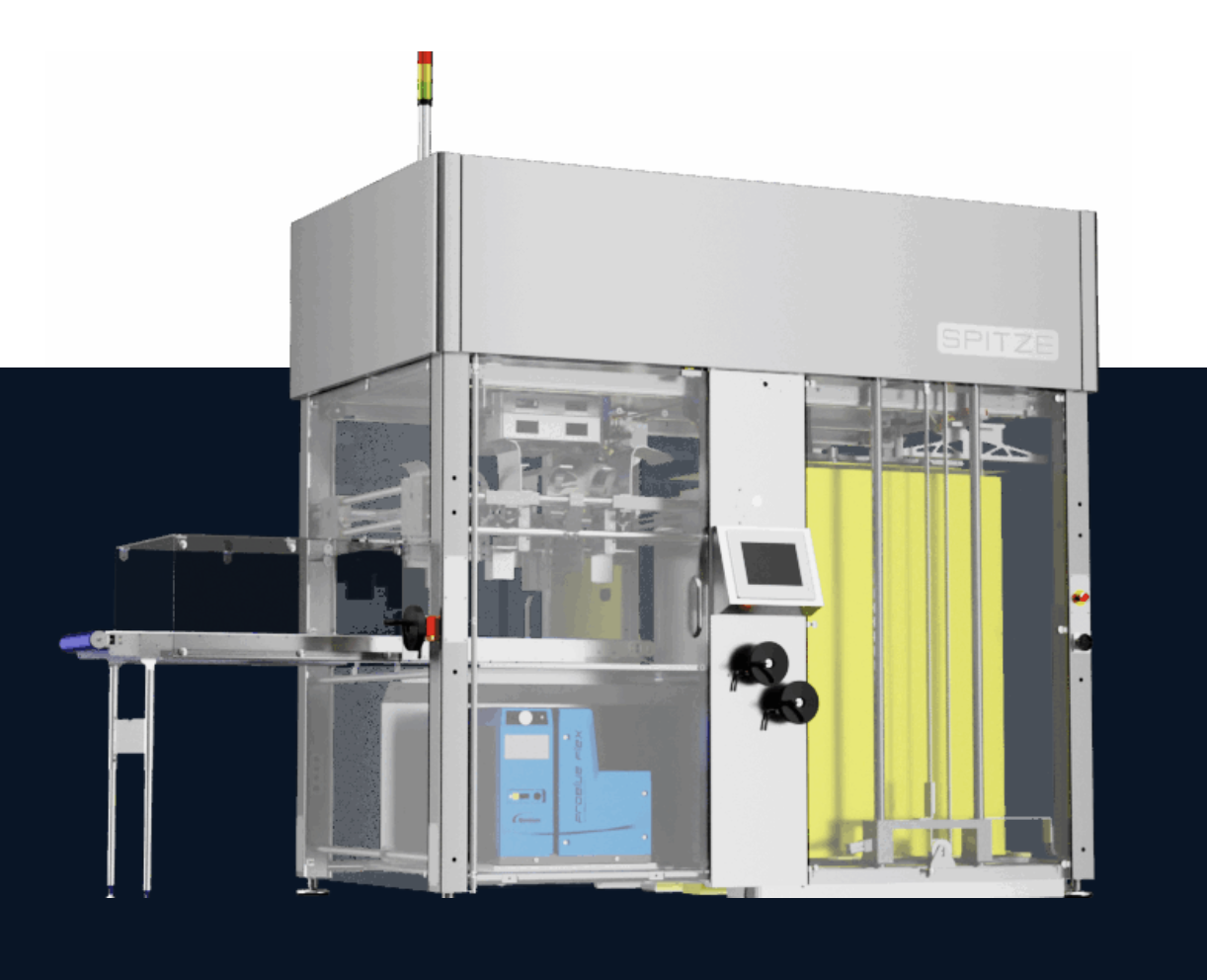

  • TRAY FORMER

    A compact machine designed to pick up material directly from the pallet.

    For automatic erecting of open trays and/or boxes with lids. The machine picks directly from EUR and/or UK pallets. Single or double stacks are possible. Adapted for many different designs, for example trays with stacking strip, conical shape, reinforced corners etc.

    Mainly adapted for corrugated cardboard.

    Electricity and operation are located on top of the machines to create a clean and hygienic floor surface.
    Available in different machine sizes depending on the format of the carton.

    Knobs and position indicators are offered as standard. Normal changeover time: 5–10 minutes. Option for automatic format changeover.

    Up to 25 trays/minute depending on carton size and design.

    I'd like more information

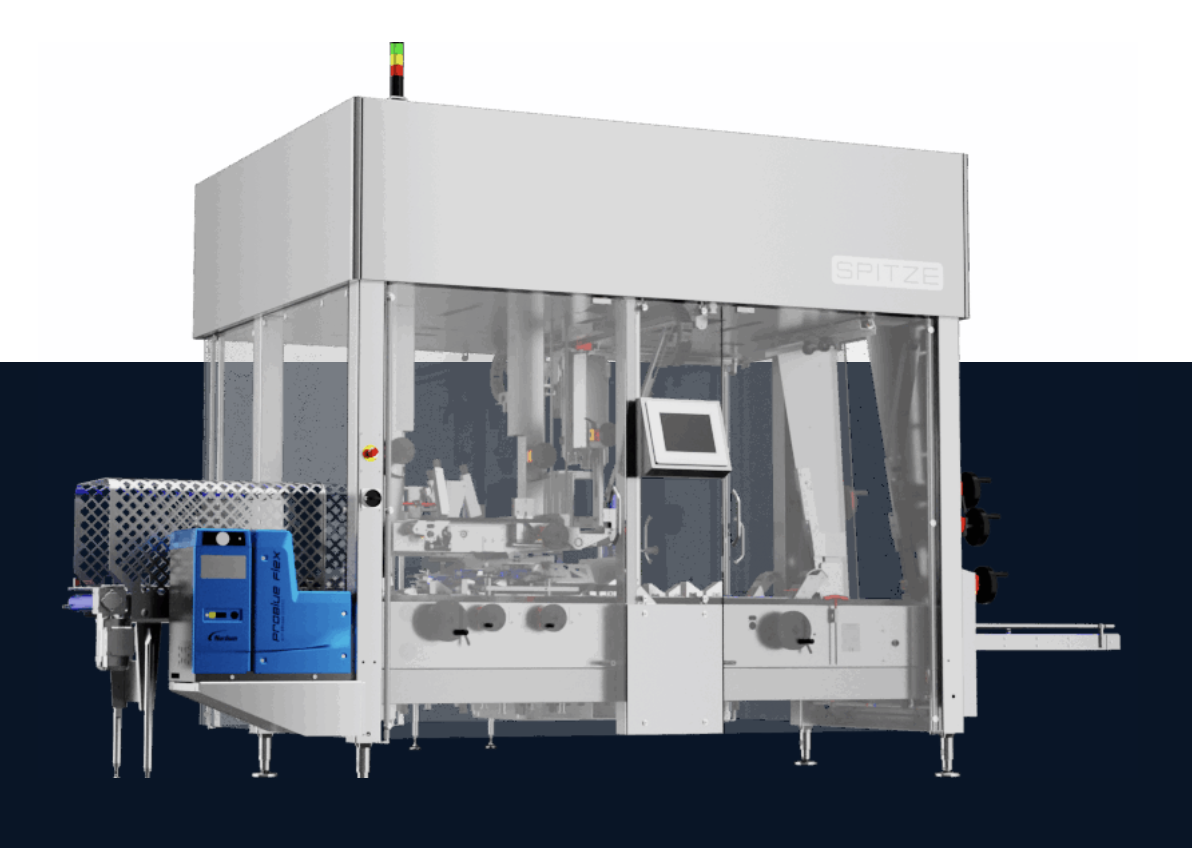

  • TRAY PACKER

    For automatic packaging of products in trays. The machine raises the blank and packs the product, all in a continuous sequence. Available in different machine sizes depending on the tray format.

    For automatic packaging of products in trays. The machine erects the tray, arranges the products and then packs the products in the tray. All in a continuous sequence inside the machine.
    Adapted for many different product types. The machine has a variety of options, such as automatic format changeover.
    Mainly adapted for corrugated cardboard. Cardboard and solid board are possible.

    Electricity and operation are located on top of the machines to create a clean and hygienic floor surface.
    Available in different machine sizes depending on the tray format.

    Knobs and position indicators are offered as standard. Normal changeover time: 10–15 minutes. Option available for automatic format changeover of the base machine.

    Up to 20 trays/minute depending on carton size, product and machine variant.

    Contact Us

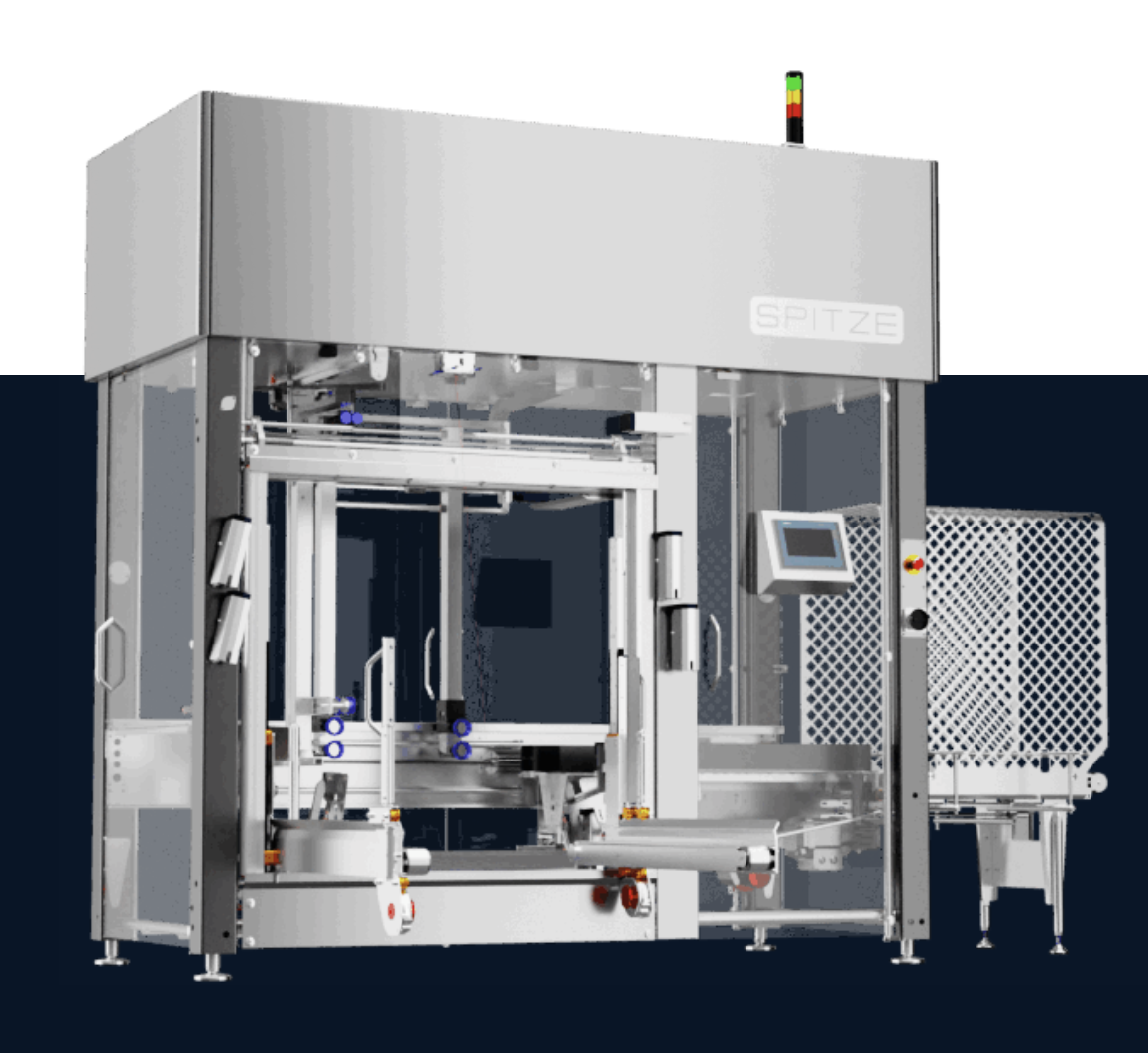

  • RSC CASE ERECTOR

    We can provide highly customised systems in order to satisfy our customers’ requests. The project is developed starting from a thorough analysis of the customer’s needs in terms of products, packaging, speed, formats, technology, layout, etc.

    Tell me more

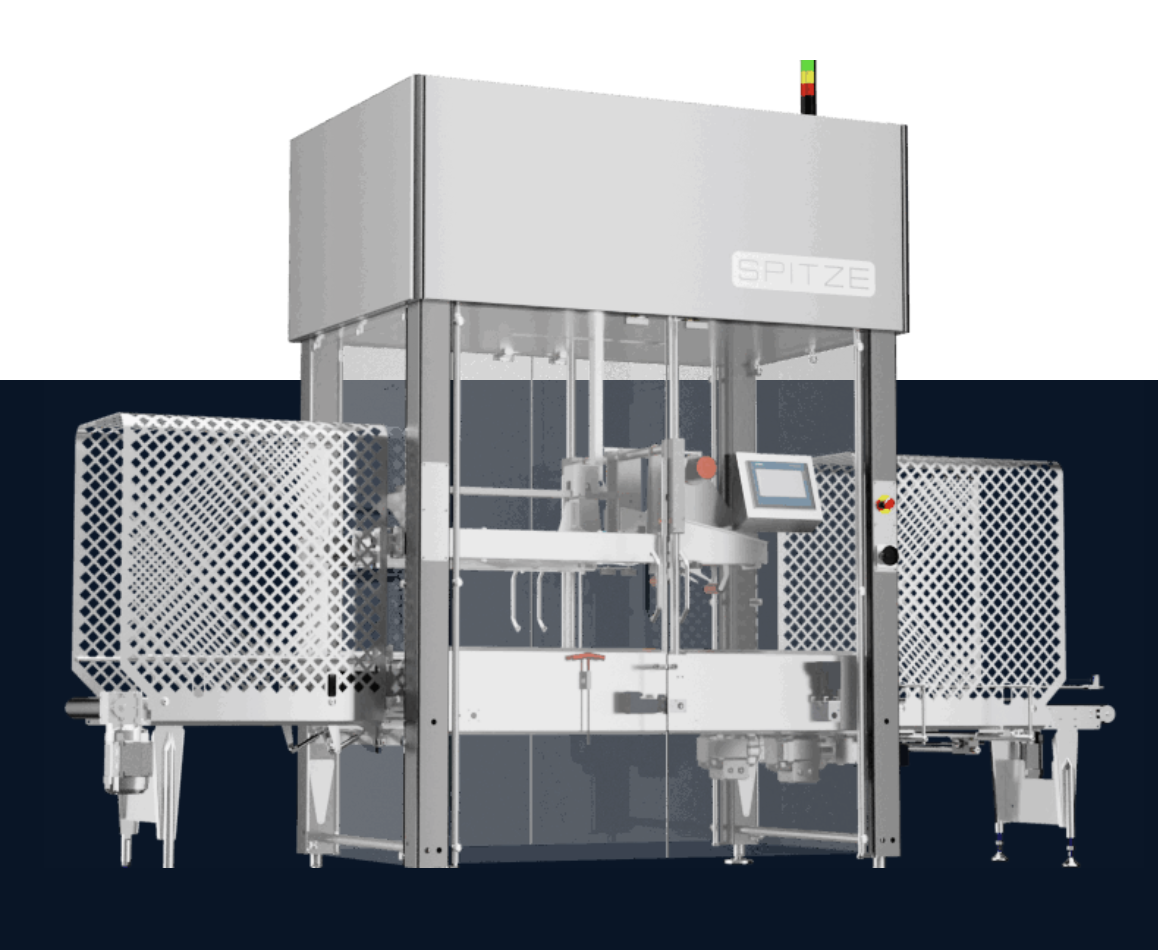

  • RSC CASE CLOSER

    The constant R&D is a crucial activity to keep being competitive in an ever-changing market. Our dedicated team allows us to quickly adapt to market changes in demand and to take on new challenges.

    I'd like more information

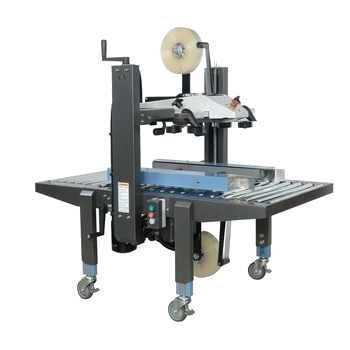

  • UNIFORM SIZE CASE TAPER

    Manually Adjustable Case Taping Machine for Uniform Size RSC Boxes

    Contact Us

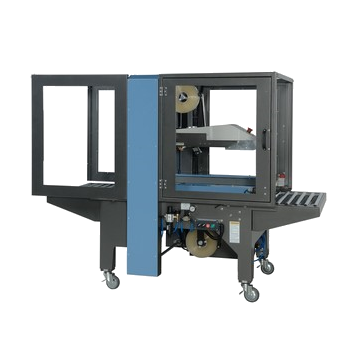

  • RANDOM SIZE CASE TAPER

    Automatically Adjustable Case Taping Machine for Random Size RSC Boxes, Taping the top and Bottom of each box.

    More info

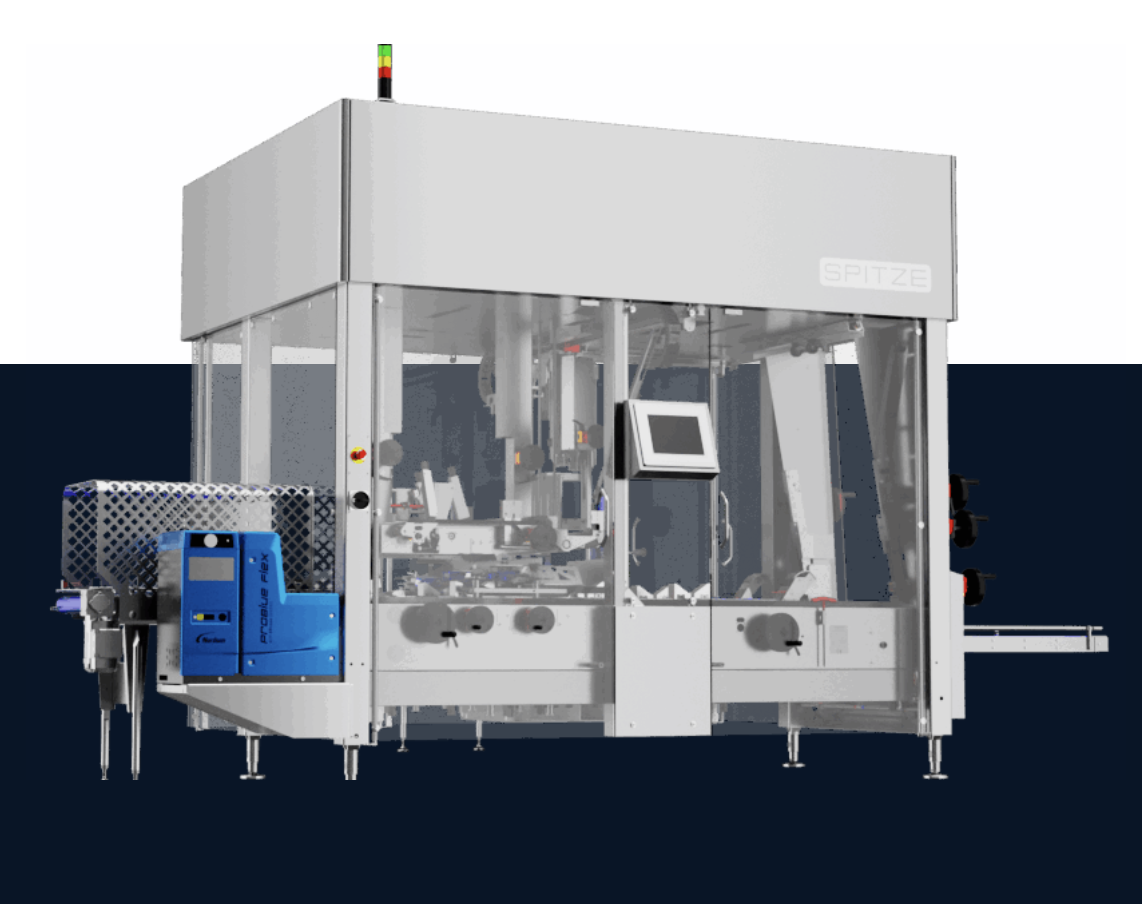

WA WRAP AROUND CARTONERS / CASE PACKERS

SPITZE’s WA WRAP AROUND CARTONERS / CASE PACKERS combines high technology and convenience with an extremely reduced footprint it ensures top notch performance and total reliability. It is available both with a flex picker or with a mechanical picking head and it can run all kinds of products.

The WA range can handle various kinds of products in to Wrap Around Style Cases.

IT IS POSSIBLE TO CASE PACK VARIOUS KINDS PRODUCTS IN VARIOUS CONFIGURATIONS.

For automatic packaging of products in boxes. The machine raises the blank, packs the product and closes the box. All in a continuous sequence. Adapted for many different product types. The machine has a number of options, such as adaptation to shelf-ready packages. Mainly adapted for corrugated cardboard. Cardboard and solid board are possible. Available in different machine sizes depending on the box format.

For automatic packaging of products in boxes. The machine erects the blank, packs the product and seals the box. All in a continuous sequence.
Adapted for many different product types. The machine has a variety of options, such as adaptation to shelf-ready packages.
Mainly adapted for corrugated cardboard. Cardboard and solid board are possible.

Electricity and operation are located on top of the machines to create a clean and hygienic floor surface.
Available in different machine sizes depending on the box format.

Knobs and positional dial indicators are offered as standard. Normal changeover time: 10–15 minutes. Option for automatic format changeover.

Up to 20 boxes/minute depending on size, product and packaging design.

Machine Output

  • CUSTOMISATION

    We can provide highly customised systems in order to satisfy our customers’ requests. The project is developed starting from a thorough analysis of the customer’s needs in terms of products, packaging, speed, formats, technology, layout, etc.

    Tell me more

  • INNOVATION

    The constant R&D is a crucial activity to keep being competitive in an ever-changing market. Our dedicated team allows us to quickly adapt to market changes in demand and to take on new challenges.

    I'd like more information

  • "MADE IN SWEDEN"

    The whole design and production process is done internally: R&D, design and engineering, and after-sales support. EVERYTHING IS “MADE IN SPITZE SWEDEN”

    Contact Us

  • AFTER SALES SERVICE

    Packology in conjunction with SPITZE’s after sales service provides quick feedback, providing remote and on-site-assistance locally and from Italy. The timeliness of response is a non-negotiable rule for our After Sales Department because we understand how critical a quick reaction is for our customers.

    More info

COBOT PALLETISERS

ROBtek palletising sollutions are designed to handle a wide range of products including WRAP AROUNDS CASES, DISPLAY TRAYS with LID, DISPLAY TRAYS, LEDGE TRAYS, FLIPCASES, AMERICAN CASES, PACKS, BAGS etc.

ROBtek by Packology offers simple palletising solutions according to the customers’ specific needs:

  • Single or Double Palletising stations with a Single Cobot.

The picking heads are designed according to the products’ characteristics and built in-house in order to maximise the performance of the system.

Whether you are looking for Cartoning Machines or a Turn Key Automated Case Packing and Palletising Solution?

We can help!
